FIA Weld-in Seat Rail Kit

This particular product is a comprehensive kit of high-quality parts designed to help competitors quickly comply with the latest requirements in motorsport. The kit is carefully designed for easy installation, with attention to detail and materials chosen for their weldability.

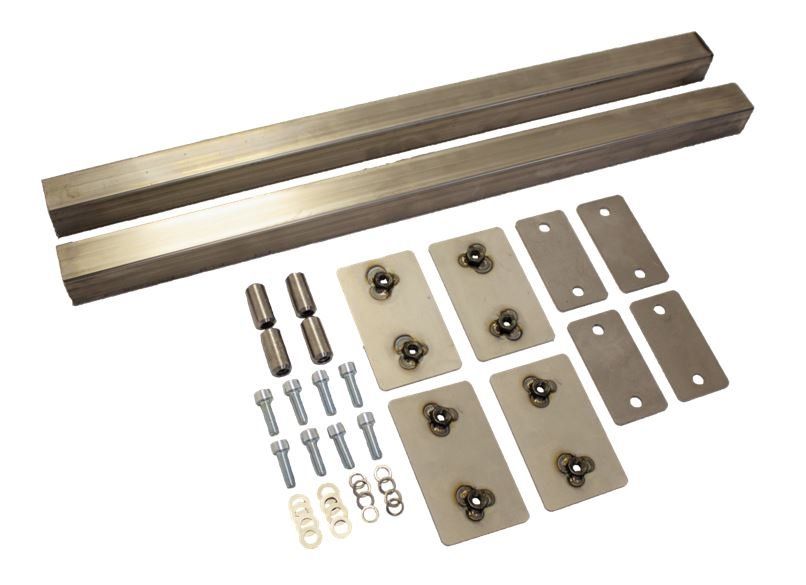

The key components included in the kit are as follows:

1. Rails: The kit contains two rails, each measuring 597mm in length. These rails are made from CR4 Steel, which is likely chosen for its strength and durability.

2. Weld-In Bosses: Four weld-in bosses are included in the kit. These bosses are made from EN3b steel and have M8 threads. They are likely designed to be welded onto the chassis to provide secure attachment points for various components.

3. Mounting Plates: Four mounting plates are part of the kit. These plates are made from CR4 Steel and have dimensions of 45mm x 90mm x 3mm. They likely serve as interface components between different parts of the setup.

4. Chassis Mount Plates: Four chassis mount plates are included, made from CR4 steel. They measure 110mm x 65mm x 2mm and have M8 nuts already attached. These plates are probably meant to be securely mounted to the vehicle's chassis.

5. Bolts: The kit provides eight high-tensile bolts with a grade of 10.9. These bolts are M8 in size and are zinc-coated. They likely serve as fasteners to securely attach various components together.

6. Spring Washers: Along with the bolts, spring washers are provided. These washers are used to help maintain proper tension and prevent loosening of the bolts over time.

The purpose of this kit is to facilitate the process of making a vehicle compliant with the regulations set by organizations such as MSUK (Motorsport UK) and FIA. By providing all the necessary components and clear installation instructions, this kit aims to offer a convenient solution for competitors looking to meet the latest requirements in motorsport.
